Domestic RO System known as Under The Counter RO System
This is the Five-Stage Reverse Osmosis System(RO System) without a pump
This model is available in the capacity of 10 β 12 LPH (Liter Per Hour) and 20 LPH for domestic use only

Domestic RO System known as Under The Counter RO System
This is the Five-Stage Reverse Osmosis System(RO System) with a pump
This model is available in the capacity of 10 β 12 LPH (Liter Per Hour) and 20 LPH for domestic use only

Under the Counter Reverse Osmosis System provides safe, pure water using Reverse Osmosis Technology.
The system installs neatly under the sink. Comes with a long reach faucet, storage tank, and necessary installation hardware.
Itβs capable of removing over 90% of total dissolved solids, +99% of all organics, and +99% of all bacteria.
5 Stage Filtration 400 Gallons Per Day / 1500 Liters Per Day Long Reach Chrome Faucet All hardware included First Stage: 5 microns sediment pre-filter Second Stage: Activated Carbon pre-filter Third Stage: Carbon block pre-filter Fourth Stage: 400 GPD 3013 PureWater Reverse Osmosis Membrane Fifth Stage: Inline GAC filter Fully Assembled









The above pretreatment setup is not guaranteed to work unless recommended by a sales agent according to the water analysis report from a lab. A water analysis report is very important as it determines the pretreatment setup. As you can see on the sketch above, the pretreatment consists of a Sand/Glass Filter, Carbon Filter, and Antiscalant Dosing system. Pretreatment setups can consist of even more items installed before the reverse osmosis system. Should you require us to install the system for you, a quote with the installation fee will be sent to you by the sales agent in charge. Training can also be offered to the guys you want to be the ones installing your setup instead of our technicians.

RO membrane water purifier uses semi-permeable spiral wound membranes to separate and remove dissolved solids, organic, sub-micron colloidal matter, and bacteria from water. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% of all bacteria in the feed water. Reverse osmosis RO machine is very dense and has a very high removal rate for viruses, ions, phage, and bacteria, at least above 3log (removal rate >99.9%)

RO membrane water purifier uses semi-permeable spiral wound membranes to separate and remove dissolved solids, organic, sub-micron colloidal matter, and bacteria from water

RO membrane water purifier uses semi-permeable spiral wound membranes to separate and remove dissolved solids, organic, sub-micron colloidal matter, and bacteria from water
The rack has been changed from the original 38cm*38cm to 25cm*25cm. Now the dimension of the RO main host can reach 50cmx60cmx130cm, which is 40% smaller than the water treatment system on the market. We also have more compact spacers for parts, components, and smaller racks, which now have less material. Because we redesigned the frame and component construction, saving materials, and lower cost than conventional products. This RO water plant is especially suitable for customers who are sensitive to the product price and freight and also want to develop new markets with a lower investment of costs.

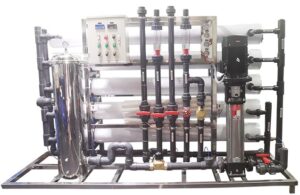

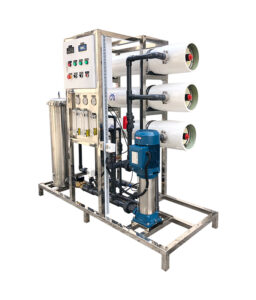

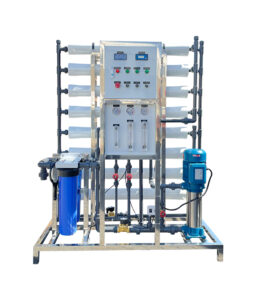

Compact Industrial reverse osmosis systems is a durable piece of equipment that, with proper care and maintenance will last for many years. The systems are part of a family of reverse osmosis units designed for operation with fresh and brackish feedwaters having TDS values below 1,500ppm. Models are available with permeate outputs of between 150 and 1,000 litres/hr as shown in the specifications.


RO membrane water purifier uses semi-permeable spiral wound membranes to separate and remove dissolved solids, organic, sub-micron colloidal matter, and bacteria from water

Capacity 4000LPH/24000GPD
Voltage 220V/50Hz,220V/60Hz Single phase
Recovery 50%-70%
Desalination 96%-99%
Membrane Qty 2pcs
Temp of raw water 1-45β
Feed Water Pressure 1-5 bar
Raw water TDS 0-1000ppm
Application raw water Tap water, Brackish water, Seawater
RO Membrane Vontron, Dow
